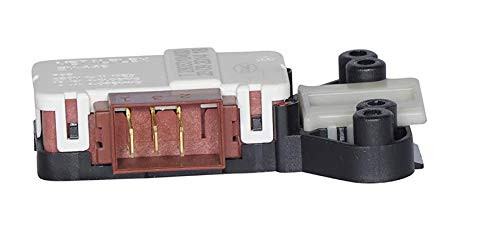

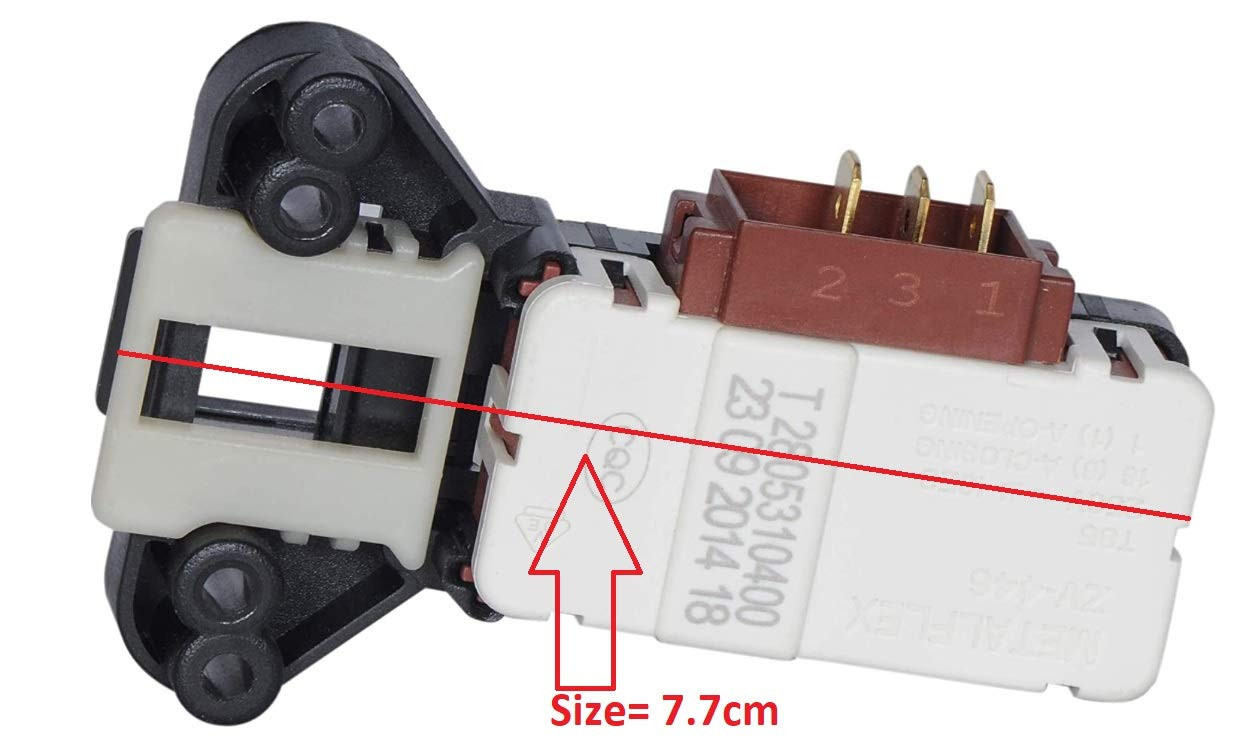

High-quality washing machine door lock designed for secure and reliable operation. This safety interlock ensures the door remains closed during washing cycles, preventing leaks and enhancing user safety. Compatible with a variety of front-load and top-load washing machines, it features durable construction and easy installation.

The door lock of a washing machine is an essential safety and control component that ensures the door remains securely closed during operation, especially during the wash and high-speed spin cycles.

? Function of the Door Lock:

1. Prevents the Door from Opening During Operation:

   • Ensures safety by locking the door once the cycle starts and unlocking it only after the drum stops completely.

2. Sends Signal to Control Board:

   • Confirms the door is securely locked, allowing the washing machine to proceed with washing, rinsing, or spinning.

   • If the door isn’t locked properly, the machine won't start or will show an error.

3. Ensures Watertight Sealing:

   • Works in conjunction with the door gasket to prevent water from leaking during operation.

⚙️ How It Works:

• Most modern washing machines use an electromechanical door lock system.

• Once the door is closed and the wash cycle begins:

  • An electrical current activates the bi-metallic strip or solenoid, which locks the door.

  • At the end of the cycle, the current is cut, the mechanism cools, and the lock releases—often after a short delay (15–60 seconds).

? Typical Components:

• Locking mechanism (latch and catch)

• Electromechanical actuator (solenoid or bi-metal strip)

• Sensor switch (confirms door is closed and locked)

• Wiring harness (connects to control board)

? Location:

• Integrated into the door frame of front-loading machines.

• In top-load machines, the lid lock performs the same function, usually located under the top lid near the hinges.

? Signs of a Faulty Door Lock:

• Washer won’t start or gets stuck on the door lock phase.

• Door won’t open after the cycle ends.

• Error codes related to door lock (e.g., “DL”, “DE”, or “F22” depending on the brand).

• Clicking sounds without locking or unlocking action.

?️ Maintenance & Tips:

• Keep the door latch area clean and free from detergent buildup or debris.

• Do not force the door open—wait for the lock to release.

• If the lock mechanism fails, it should be replaced with a compatible OEM part.

• Always unplug the machine before servicing the door lock.
